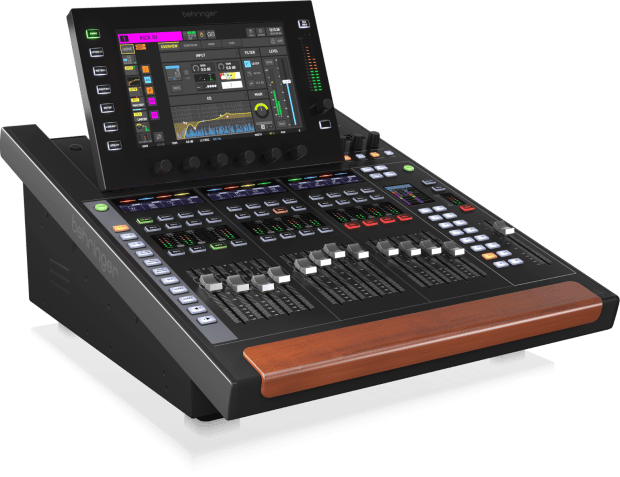

48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10" Touch Screen and 13-Fader Control Surface
24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
10.1 inch main display with multi-touch screen and adjustable swivel
Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
Integrated USB Audio/MIDI Interface for 48 audio channels in and out
Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
3 AES50 ports for configurable 144 input and output signals with ultra-low jitter and latency
16 True-stereo effects processing engines, with 80+ world-class algorithms
3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
40 Stereo Input Channels with 5 variable plug-in processing slots each
8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
8 Mute Groups and 8 DCA's for track grouping and consolidation
2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
2 channel GPIO for controlling almost anything with WING
5-Pin MIDI in and out for control and synchronization with external devices
DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
19" rack-mountable in 3 positions
Insane I/O - Literally Hundreds of Ins and Outs
382 inputs and 368 outputs on WING COMPACT give you the freedom to adapt to any scenario:
Switch between artists on the fly
Manage multiple play out destinations with streaming or video
Navigate complex live events with distributed or networked i/o
Use the built-in 64-track recorder for virtual sound checks or live playback
Connect to the 48-track USB audio interface for perfect integration with your DAW
Enjoy World-Class Effects
WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required.
WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.
Configure WING to Suit You
Record Up to 64 ChannelsThe WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.
Swap Out External Cards with EaseYou can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Soundgrid, for example.
Plus Another 64x64 Channels via Internal AoIP ModulesThe internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Soundgrid) modules available.
